IIStealer: A server‑side threat to e‑commerce transactions
The first in our series on IIS threats looks at a malicious IIS extension that intercepts server transactions to steal credit card information
ESET researchers have discovered and analyzed a previously undocumented trojan that steals payment information from e-commerce websites’ customers. The trojan, which we named IIStealer, is detected by ESET security solutions as Win64/BadIIS.
This blogpost is the first installment in our series where ESET researchers put IIS web server threats under the microscope. For a comprehensive guide to how to detect, analyze and remove IIS malware, refer to our white paper Anatomy of native IIS malware, where IIStealer is featured as one of the studied families (Group 5).
IIStealer is implemented as a malicious extension for Internet Information Services (IIS), Microsoft web server software. Being a part of the server, IIStealer is able to access all the network communication flowing through the server and steal data of interest to the attackers – in this case, payment information from e-commerce transactions.

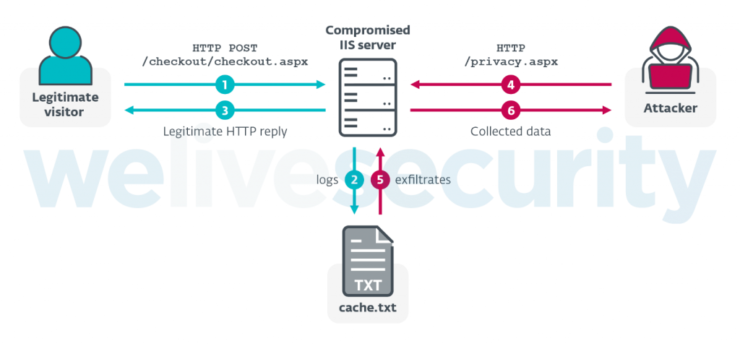

As illustrated in Figure 1, IIStealer operates by intercepting regular traffic between the compromised server and its clients (the seller and the buyers), targeting HTTP POST requests made to specific URI paths: /checkout/checkout.aspx or /checkout/Payment.aspx.
Whenever a legitimate website visitor makes a request to these checkout pages (1), IIStealer logs the HTTP request body into a log file (2), without, in any way, interfering with the HTTP reply generated by the components of the legitimate website (3).
Adversaries can then exfiltrate the collected data by making a special HTTP request to the compromised IIS server: once IIStealer detects a request made to a specific URI (/privacy.aspx) with an attacker password included in the X-IIS-Data header (4), it embeds the collected data in the HTTP response for that request (5,6).
With these capabilities, IIStealer is able to steal credit card information sent to e-commerce websites that don’t use third-party payment gateways. Note that SSL/TLS and encrypted communication channels don’t secure these transactions against IIStealer, as the malware can access all data handled by the server – which is where the credit card information is processed in its unencrypted state.
The samples of this malware that we analyzed seem to be tailored for specific e-commerce websites (with hardcoded checkout page URIs). According to our telemetry, targeted were a small number of IIS servers in the USA, between September 2020 and January 2021, but this is likely affected by our limited visibility into IIS servers – it is still common for administrators to not use any security software on these servers.
IIStealer is implemented as a malicious, native IIS module – a C++ DLL dropped in the %windir%system32inetsrv folder on the compromised IIS server and configured in the %windir%system32inetsrvconfigApplicationHost.config file. In some cases, IIStealer is deployed under the name dir.dll and, as seen in Figure 2, uses a forged VERSIONINFO resource to mimic a legitimate Windows IIS module called dirlist.dll.
Because it is an IIS module, IIStealer is loaded automatically by the IIS Worker Process (w3wp.exe), which handles the requests sent to the IIS web server – this is how IIStealer achieves persistence, and how it can affect the processing of incoming requests.
We don’t have any information about how the malware is spread, but we know that administrative privileges are required to install it as a native IIS module, which narrows down the candidates for the initial compromise. A configuration weakness or vulnerability in a web application, or the server itself, are likely culprits.
As for its technical characteristics, IIStealer implements a core class inherited from CHttpModule (module class) and overrides the CHttpModule::OnPostBeginRequest method with its malicious code. As with all native IIS modules, IIStealer exports a function named RegisterModule (see Figure 3), where it instantiates the module class and registers its methods for server events – more specifically, it registers for the RQ_BEGIN_REQUEST post-event notification that is generated every time the server starts processing an inbound HTTP request. As a result, the OnPostBeginRequest method is called with each new request, which allows IIStealer to affect the request processing.
In the OnPostBeginRequest handler, IIStealer filters incoming HTTP requests by request URIs. All POST requests made to /checkout/checkout.aspx or /checkout/Payment.aspx are logged – along with their full HTTP bodies – into a file named C:WindowsTempcache.txt. These requests are made by legitimate visitors of the compromised e-commerce websites and can contain sensitive information such as personal details and credit card numbers.
The collected data can be exfiltrated via a specifically crafted HTTP request from the attacker. This request must have an X-IIS-Data HTTP header set to a hardcoded, 32-byte alphanumeric password (that we have chosen not to disclose), and must be sent to a URL path specified in the malware sample:
Once the malicious module detects such a request, it uses the IHttpResponse::Clear method to delete any HTTP response prepared by the IIS server, and copies the unencrypted contents of the log file into the HTTP response body using the IHttpResponse::WriteEntityChunks API function, as seen in Figure 4.
This allows the operators of IIStealer to access and exfiltrate the collected data by simply sending a special request to the compromised IIS server – there is no need for the malware to implement additional C&C channels, or embed any C&C server domains in its configuration.
IIStealer is a server-side threat that eavesdrops on the communications between a compromised e-commerce website and its customers, with the goal of stealing sensitive payment information – but of course, malicious IIS modules can also target credentials and other information. Even though SSL/TLS is vital in securing the transmission of the data between the client and the server, it doesn’t prevent this attack scenario as IIStealer is a part of the server. This should be disturbing for all serious web portals that want to protect their visitors’ data, including authentication and payment information.
The best way to harden an IIS server against IIStealer and other threats is to:
- Use dedicated accounts with strong, unique passwords for the administration of the IIS server.
- Regularly patch your OS, and carefully consider which services are exposed to the internet, to reduce the risk of server exploitation.
- Only install native IIS modules from trusted sources.
- Consider using a web application firewall, and/or endpoint security solution on your IIS server.
- Regularly check the configuration file %windir%system32inetsrvconfigApplicationHost.config, as well as the %windir%system32inetsrv and %windir%SysWOW64inetsrv folders to verify that all the installed native modules are legitimate (signed by a trusted provider, or installed on purpose).
For web developers: Even if you don’t have control over the IIS server where your web service is hosted, you can still take steps to reduce the impact on users of your web service in the case of a compromise, especially:
- Do not send the password itself to the server (not even over SSL/TLS); use a protocol such as Secure Remote Password (SRP) to authenticate users without the need for the unencrypted password to be transmitted to the server, nor data that could be used to reauthenticate. IIS infostealers are a good example of why server-side hashing is not good enough.
- Avoid unnecessarily sending sensitive information from the web application; use payment gateways.
- If you identify a successful compromise: notify all parties involved in any security breach so they can take quick action.
For consumers: from the visitor’s perspective, it is impossible to know whether an IIS server is compromised, but these tips will help you reduce the risk:
- Be careful about where you enter your credit card number. Consider using payment gateways by trusted third-party providers on e-commerce websites whose reputation is unknown to you: with payment gateways, such websites won’t handle the sensitive payment information.
- Keep an eye on your credit statement for small or unusual payments: often small amounts are processed to test whether the cards are valid.
- If you spot something unusual, notify your bank immediately.
Additional technical details on the malware, Indicators of Compromise and YARA rules can be found in our comprehensive white paper, and on GitHub. For any inquiries, or to make sample submissions related to the subject, contact us at: email@example.com.
Stay tuned for the next installments of this series where we cover malicious IIS extensions used for cyberespionage and SEO fraud.
Indicators of Compromise (IoCs)
ESET detection names
Filenames and paths
MITRE ATT&CK techniques
Note: This table was built using version 9 of the MITRE ATT&CK framework.
|Resource Development||T1587.001||Develop Capabilities: Malware||IIStealer is a custom-made malware family.|
|Execution||T1569.002||System Services: Service Execution||IIS server (and by extension, IIStealer) persists as a Windows service.|
|Persistence||T1546||Event Triggered Execution||IIStealer is loaded by IIS Worker Process (w3wp.exe) when the IIS server receives an inbound HTTP request.|
|Defense Evasion||T1036.005||Masquerading: Match Legitimate Name or Location||IIStealer has been deployed under the name dir.dll, in an attempt to mimic a legitimate Microsoft IIS module called dirlist.dll.|
|T1027||Obfuscated Files or Information||IIStealer uses string stacking in an attempt to avoid some string-based detection.|
|Credential Access||T1056||Input Capture||IIStealer intercepts network traffic between the IIS server and its clients to collect sensitive information such as credit card details.|
|Collection||T1119||Automated Collection||IIStealer automatically collects information from inbound HTTP requests, such as credit card details.|
|T1074.001||Data Staged: Local Data Staging||IIStealer uses a local file to stage collected information.|
|Command and Control||T1071.001||Application Layer Protocol: Web Protocols||Adversaries send HTTP requests to the compromised IIS server to control IIStealer.|
|Exfiltration||T1041||Exfiltration Over C2 Channel||IIStealer uses its C&C channel to exfiltrate collected data: HTTP requests are sent by the adversary to the compromised IIS server.|
